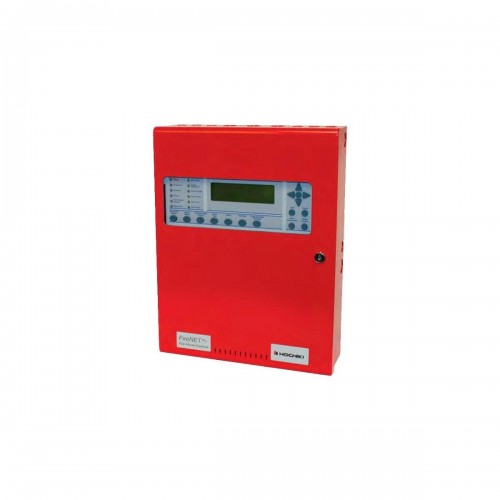

ANALOG ADDRESSABLE FIRE ALARM CONTROL PANEL

Analog design using Hochiki’s advanced DCPprotocol for fast communication•Up to 127 sensors & modules, plus 127 analog sounderbases, for a total of 254 points possible per loop•Uses standard wire, no-shielded or twisted pair requiredon SLC loops•Integrated digital alarm communicator (DACT) withContact ID and SIA reporting formats•Programmable sensitivity levels by device•Alarm Verification feature•Automatic daily calibration & drift compensation routine•Large 8-line x 40-character LCD display (320 char.)•1 or 2 loop (option)•RS-485 bus for panel network (option)•Built-in RS-232 interface for programming via a PC•3 on board programmable Form C relays rated at 1 ampat 30VDC•2 auxiliary power outputs, each rated 360mA at 24 VDC•Loop Explorer Windows® configuration utility•Auto-learn feature•500 network wide software zones•Network Capability of up to 64 panels (option)•Built in help and alarm information screens•2 on-board Class B (style Y) NAC circuits rated at 2.3amps each (Special Application) and 1.6 amps each(Regulated continuous)•Gentex, System Sensor, Wheelock, and Amseco NACsync protocol built-in•Automatic day/night sensitivity modes•Fire Drill test function•Walk Test function•Powerful & versatile Cause & Effect wizard including:*Cause & Effect action*Disable function configuration*Test mode configuration•Seismic CertifiedDESCRIPTIONThe FireNET™ Plus 1127 series control panel is ananalog addressable fire alarm panel with build optionscontaining 1 or 2 SLC loops, a Digital AlarmCommunicator/ Transmitter (DACT), and an RS-485bus for network communication. Each SLC loopsupports 127 devices of any combination (sensors ormodules), and 127 analog sounder bases, for apossible total of 254 points per loop. Communicationbetween devices is accomplished by use of standardcable (shielded or twisted pair is not required). Eachpanel includes a 4-amp power supply and has 2 on-board NAC circuits. The RS-485 bus providescommunication to the panel network while anotherRS-485 bus provides communication for peripheraldevices. The RS-232 interface allows the convenienceof programming via a PC. The system will support avariety of Hochiki devices; photo, ion and heatsensors, which contain a unique, patented sensordesign incorporating automatic drift compensation andday/night sensitivity modes. Additional devicesinclude contact monitors, relay controllers, supervisedauxiliary output and short circuit isolator modules. Inaddition, interfaces to conventional detection systemscan be established by using a conventional zone-monitoring module. The Loop Explorer Windows®Software interface provides the installer with fingertipaccess to installation programming and diagnostictools. An Auto Learn feature offers the conveniencefor quick start applications. Add to this a reputationfor high quality and dedicated service which makesthis an exceptional product both in performance andvalue.UL 864, Local Signaling Unit.Types: Automatic, manual,waterflow, sprinkler supervisory,Remote Station and CentralStation Service(DACT)Non-coded signaling.NFPA 70, 72 &13 Compliant3038713PRODUCT LISTINGS7165-0410:180CaliforniaState FireMarshalS6468
